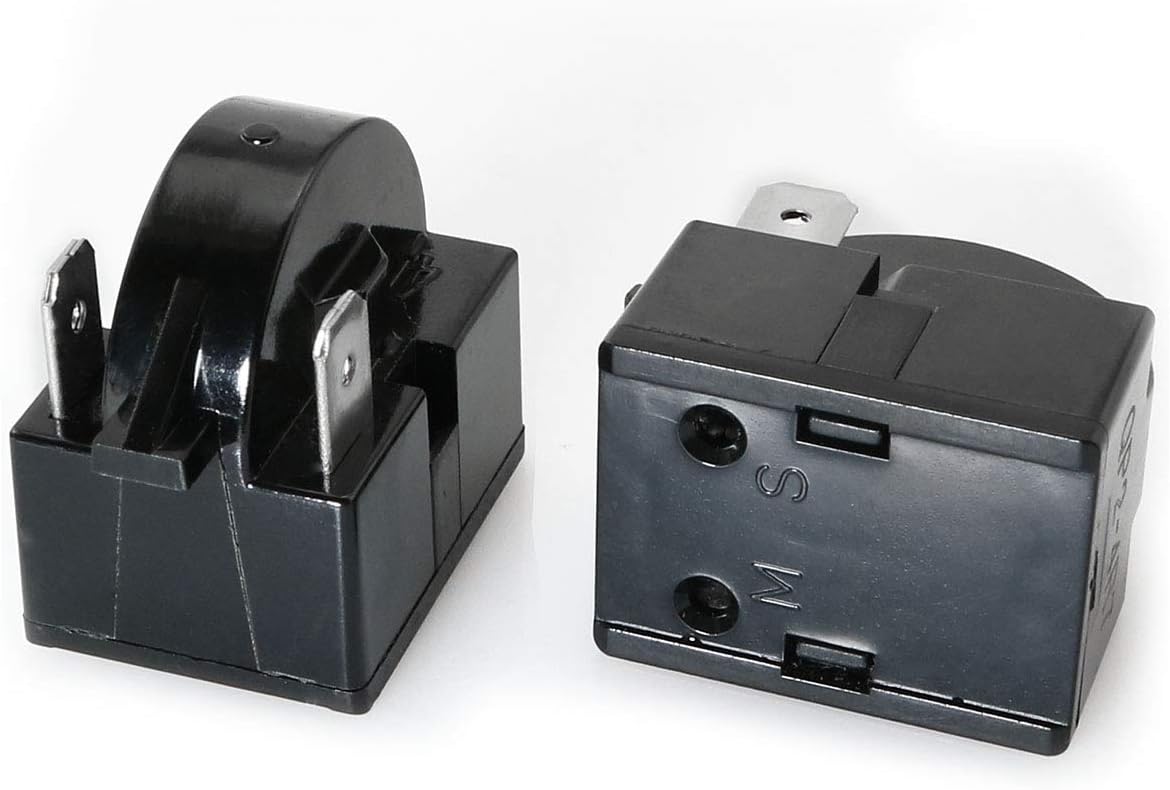

MEETOOT 2pcs QP-02-4.7 PTC Refrigerator Start Relay 2 Pin Coolers Compressor Starter 4.7 ohm Refrigerator Compressor PTC Starter

Specification: Type: Refrigerator PTC Start Relay Model: QP-02-4.7 Pin: 2 pin Resistance: 3-4.7 ohm Material: Metal + Plastic Color: Black Package includes: 2 x PTC Starter Relays Working Principle When the motor starts up, it has to overcome its inertia and the reaction force of the load. Therefore, it needs large current and torque when the motor starts up. When turn to normal, in order to save energy, large torque and need a drop, add a set of auxiliary to motor coil, work only at boot time, normal after it is disconnected, the PTC thermistor series auxiliary coil at startup, starts the PTC thermistor into the high impedance state to cut off the secondary coil, just can achieve the effect.

• Type: 2pcs Refrigerator PTC Start Relay, Model: QP-02-4.7, Pin: 2Pin, Resistance: 3-4.7 ohm
• Made of high quality material, stable characteristics, high reliability. Ideal spare parts for refrigerator to replace old one.
• Best solution for some common problems, such as compressor is not starting, burning hot and "click-clack" about Every 3-5 Minutes When Powered On.
• Suitable for various of mini-fridges, wine centers and beverage coolers and so on. Easy to install.
• Fit For: Vissani, Danby, Vinotemp, EdgeStar, Summit, Whirlpool, Frgidaire, Kenmore, Maytag, Haier, Igloo, Magic Chef.
