Joinfworld Momentary Push Button Switch 12V 20 Amp Heavy Duty Marine Waterproof Switch 4 pin 19mm SPST Blue Led Illuminated 12 Volt Button Switch with Pre-Wired Socket for Car Boat RV Truck - 2pcs
Product details
| Management number | 233931323 | Release Date | 2026/06/27 | List Price | US$4.80 | Model Number | 233931323 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Momentary Push Button Switch is 4 pin SPST momemtary type. Push & hold to switch ON, Release: OFF. Marine momentary switch is made of superior stainless steel. Sturdy and durable enough for long term use.Push Button Switch 12v is a heavy duty one with the rating of 20A 12V DC for safer application in Marine Boat, RV, Truck, UTV or other devices need circuit control.Push Button Light Switch is designed with ring blue led and the illumination mode of the momentary push button can be changed by different wiring methods.Waterproof 12v Switch is IP67 grade waterproof and dustproof. Reliable to provide you devices or vehicles with all-around protection. Good for both indoor and outdoor use.Easy-Mounting: the mounting hole diameter of this momentary button is 3/4"(19mm) and the switch button will come with wiring harness which make the wiring easy to mount but not easy to fall out.
- Product: This 12V Momentary Push Button Switch is 4 pin SPST momemtary type. Push & hold to switch ON, Release: OFF. Marine momentary push switch is made of superior stainless steel, which is sturdy and durable enough for long term use
- Heavy Duty: Push Button Switch 12v is a heavy duty one with the rating of 20A 12V DC for safer application in Marine Boat, RV, Truck, UTV or other devices need circuit control

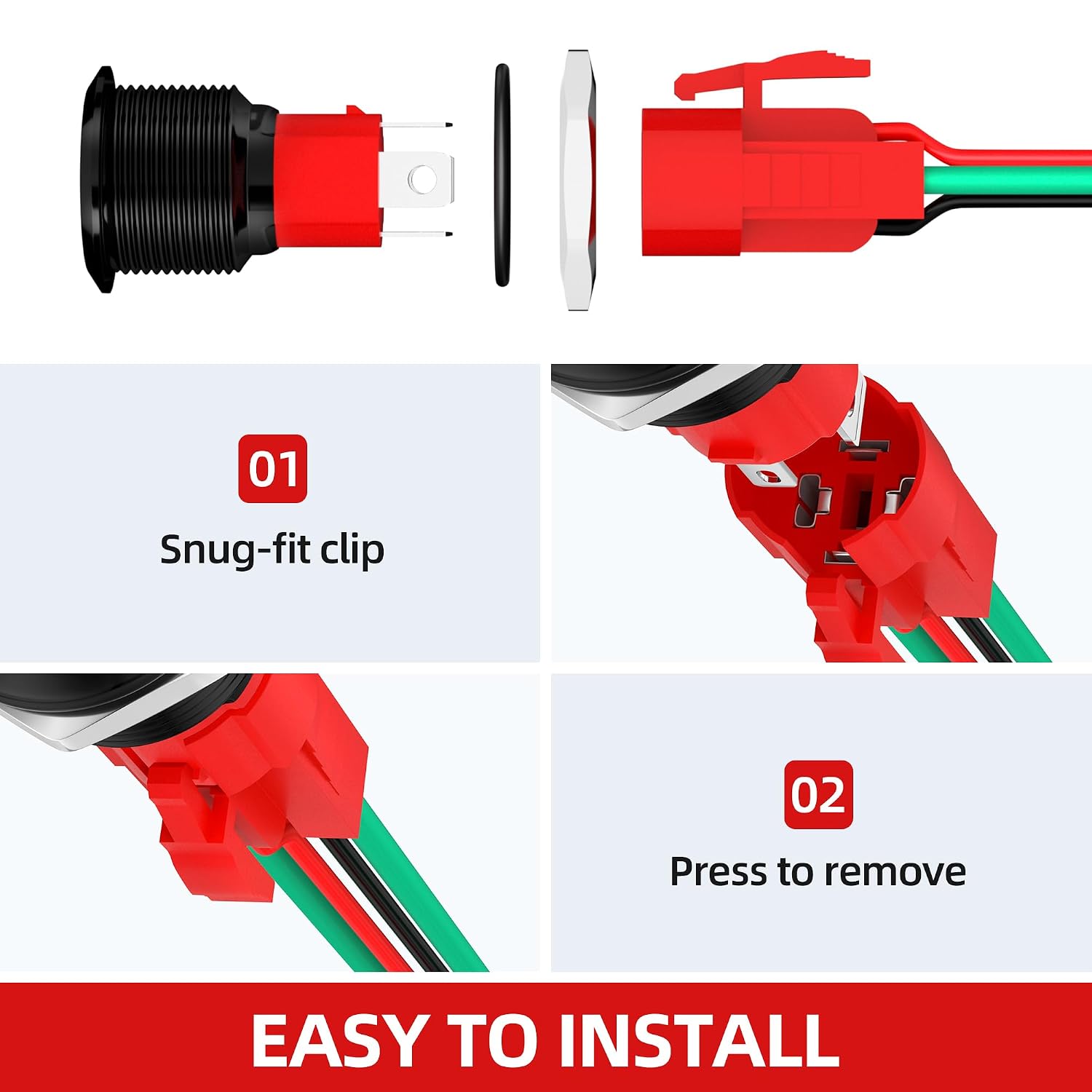

- Wire Harness: The 20 amp momentary push button switch will come with wiring harness which make the wiring easy to mount but not easy to fall out, the mounting hole diameter of this momentary button is 3/4"(20mm)

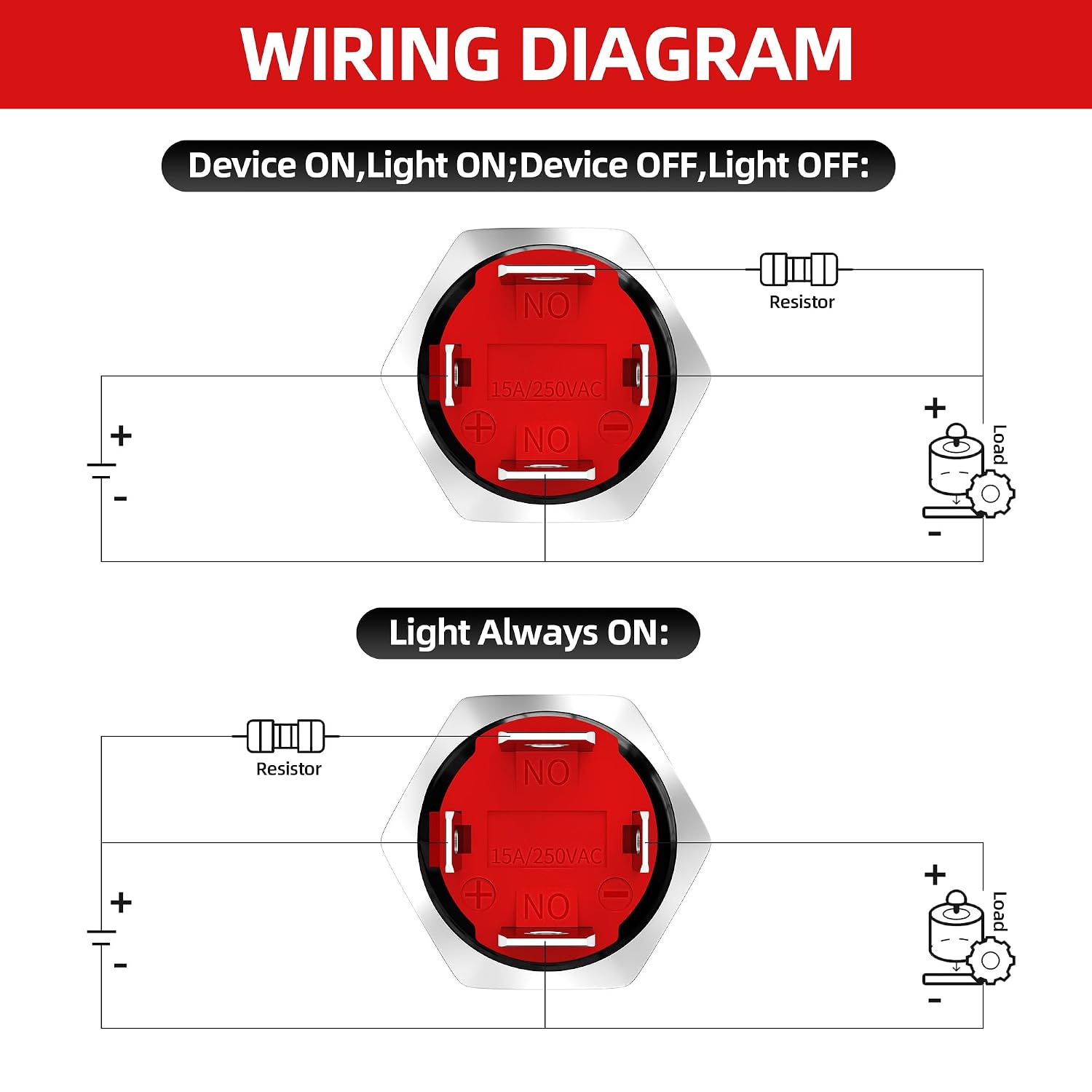

- Blue LED: The Push Button Light Switch is designed with ring blue led and the illumination mode of the momentary push button can be changed by different wiring methods
- Waterproof: Waterproof 12v Switch is IP67 grade waterproof and dustproof. Reliable to provide you devices or vehicles with all-around protection. Good for both indoor and outdoor use
| ASIN | B0C85T718L |
|---|---|
| Color | Black |
| Model | LAS3D-19F-10EM-A-BL-2pcs |
| Wattage | 240 watts |
| Terminal | Spst |
| Brand Name | Joinfworld |
| Unit Count | 1.0 Count |
| Part Number | LAS3D-19F-10EM-A-BL-2pcs |
| Switch Type | Push Button |
| Circuit Type | 2-way |
| Contact Type | Normally Open |
| Control Type | Manual |
| Manufacturer | Joinfworld |
| Actuator Type | Push Button |
| Material Type | Stainless Steel |
| Mounting Type | Panel Mount |
| Connector Type | Plug In |
| Control Method | Push Button |
| Current Rating | 20 Amps |
| Operation Mode | manual |
| Controller Type | Push Button, Ring |
| Number of Items | 2 |
| Contact Material | Copper |
| Operating Voltage | 12 Volts |
| Specification Met | CE |
| Compatible Devices | Marine Boat, RV, Truck, UTV, other 12V DC devices |
| Number of Positions | 2 |
| Connectivity Protocol | X-10 |
| Upper Temperature Rating | 85 Degrees Fahrenheit |
| Compatible with Vehicle Type | Marine Boat, RV, Truck, UTV |
| International Protection Rating | IP65 |
